| Brand Name : | TingBo |
| Model Number : | TB-01 |
| Certification : | ISO-9001 |
| Price : | $30-60 set |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 1000 set per month |
| Delivery Time : | 10-15 workdays |

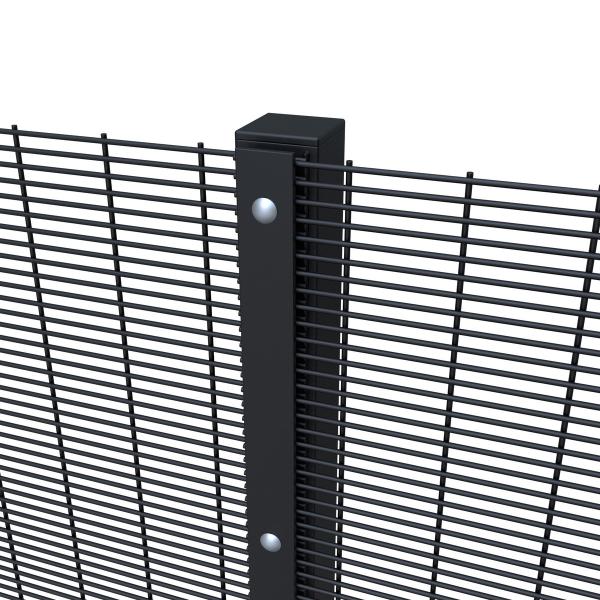

358 Security Fence, also called Anti climb fence, is the ultimate welded mesh system providing a high degree protection and discreet visual impact on the immediate environment.
* Material: Q195, steel wire
* Surface treatment:
I. Black wire welded mesh + pvc coated;
II. Galvanized welded mesh + pvc coated;
III. Hot dipped galvanized welded mesh + pvc coated.
(PVC coated colors: dark green, light green, blue, yellow, white, black, orange and red, etc.)
*Specifications as follow:
| ANTI CLIMB FENCE | |||
| Panel height | 2100mm | 2400mm | 3000mm |
| Fence height | 2134mm | 2438mm | 2997mm |
| Panel width | 2515mm | 2515mm | 2515mm |
| Hole size | 12.7mm×76.2mm | 12.7mm×76.2mm | 12.7mm×76.2mm |
| Horizontal wire | 4mm | 4mm | 4mm |
| Vertical wire | 4mm | 4mm | 4mm |
| Panel weight | 50kg | 57kg | 70kg |
| Post | 60×60×2mm | 60×60×2mm | 80×80×3mm |
| Post length | 2.8m | 3.1m | 3.1m |
| Clamp bar | 40×6m slotted | 40×6m slotted | 40×6m slotted |
| Fixings | 8 gal bolt c/w permanent security nut | ||
| No. of fixings | 8 | 9 | 11 |
| Customization accepted | |||
The wire fence is composed with quadrate post and high strength welded wire fenc :has a strong erosion resistance and anti-ultraviolet:connected by screw flat bar,the installation is very easy and convenient.This high performance system provides the ultimate protection against anti-climb & cut through.
|
|
